320pin 2x8 Ports SFP Connector Female Press-Fit with Light

Name: 320pin 2x8 Ports SFP Connector Female Press-Fit with Light
Brand: Dongguan Fuyconn Electronics Co,.LTD
SKU: FUYSFP2054-49
Price: 20 USD
Availability: InStock

Todos los productos

Conector centronics
(204)

Conector del estruendo 41612
(170)

conector del scsi
(67)

conector del centronics de 50 pernos
(57)

Conector de 36 Pin Centronics
(20)

64 Pin Centronic Connector
(28)

Conector del router V.35
(11)

conectores D-sub
(66)

Asamblea de cable de IDC
(14)

Conector de la encrespadura de IDC
(31)

Conector del campeón
(91)

Conector 1284 de IEEE
(33)

Conector RJ45
(9)

Conector del puerto paralelo
(44)

Conector femenino del PWB
(49)

Conector masculino del PWB
(28)

Conector pin de la soldadura
(36)

Conector de tarjeta
(17)

Conector de SFP
(16)

Certificación

Porcelana Dongguan Fuyconn Electronics Co,.LTD certificaciones

Estoy en línea para chatear ahora

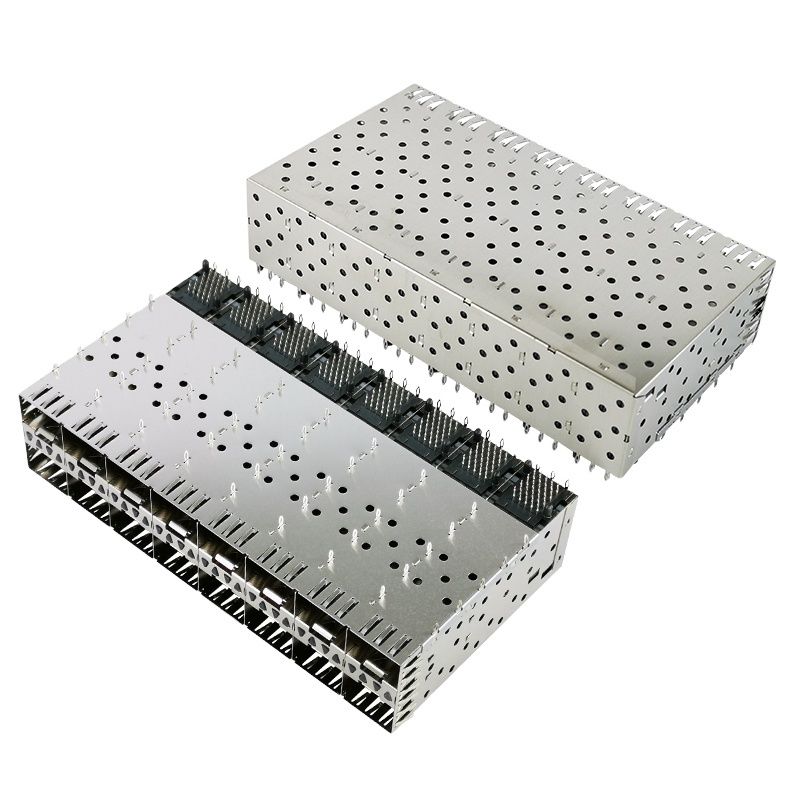

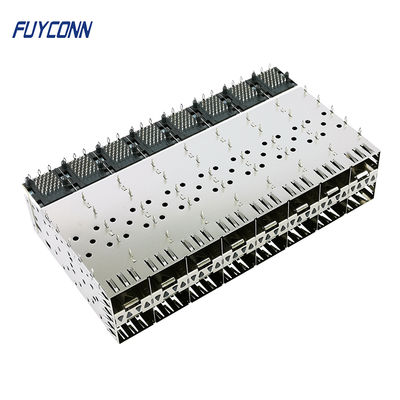

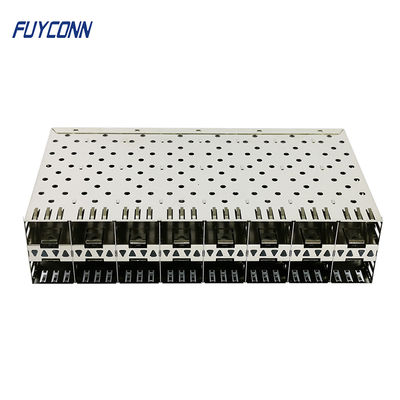

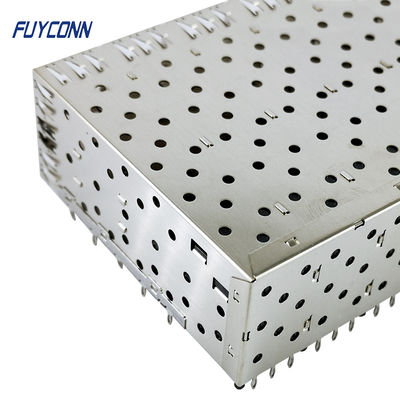

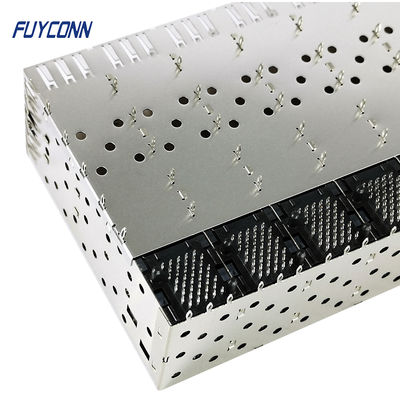

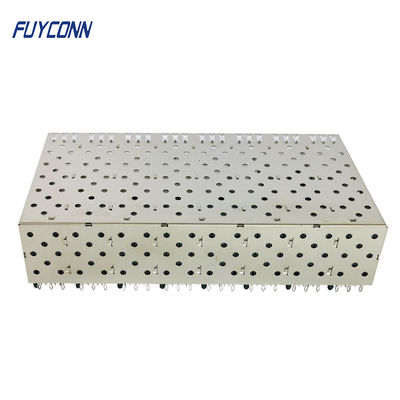

320pin 2x8 Ports SFP Connector Female Press-Fit with Light

Ampliación de imagen : 320pin 2x8 Ports SFP Connector Female Press-Fit with Light

Datos del producto:

Lugar de origen:	Guangdong, China
Nombre de la marca:	FUYCONN
Número de modelo:	FUYSFP2054-49

Pago y Envío Términos:

Cantidad de orden mínima:	100
Precio:	$20

Contacto

320pin 2x8 Ports SFP Connector Female Press-Fit with Light

descripción

Número de alfileres:	320 pines	Número de puertos:	2*8 Puertos duales
Género conector:	Femenino	Material aislante:	PBT
Material del alfiler de contacto:	Bronce de fósforo	Tipo de montaje:	Aplicación de prensado
Tubo de luz:	Sí	Calificación actual:	1AMP
Voltaje que soporta:	500V por un minuto	Resistencia del aislador:	500mΩ min (en DC500V)
Resistencia de contacto:	35mΩ max	Temperatura de operación:	-55°C a +105°C
Velocidad de velocidad de datos:	Hasta 10 GB/s (SFP+)	Finalizar:	Acero y acero
Apilable:	Sí
Resaltar:	320pin SFP connector female press-fit , 2x8 ports SFP connector with light , press-fit SFP connector with warranty

320pin Press-Fit Stackable 2x8 Ports SFP Connector with Light

SFP Cage Assembly 2-by-8 Multi-Port Female Connector

The SFP (Small Form-factor Pluggable) module connector supports various data speeds and is widely used in data communication systems. Introduced in the early 2000s to replace GBIC connectors, SFP connectors offer greater port density while handling up to 4.25Gb/s. These connectors support Gigabit Ethernet, Fibre Channel, SONET, and other communication standards.

The enhanced SFP+ version, introduced in 2006, supports data rates up to 10Gb/s while maintaining the same compact size. Both SFP and SFP+ connectors are available in copper and optical variants, making them versatile solutions for high-speed networking applications.

Product Features

Product Name:	SFP Connector
Product Line:	Small Form-factor Pluggable
Connector Gender:	Female Centronic Connector
Number of Positions:	320pin
Ports:	2×8 (16 Ports)
Contact Material:	Phosphor Bronze
Finish:	Nickel Silver
Insulation Material:	PBT
Lightpipe:	Included

Electrical Specifications

Current Rating:	1AMP
Withstanding Voltage:	500V for one minute
Insulator Resistance:	500MΩ min (at DC500V)
Contact Resistance:	35MΩ Max
Operation Temperature:	-55°C to +105°C

Applications

Networking equipment
Router/Switch systems
Data/Communications infrastructure
High-end servers
Telecommunications hardware
Fibre Channel and Gigabit Ethernet systems

Packaging & Shipping

Our products are securely packaged using:

Vacuum trays for protection
PE bags for moisture resistance
Sturdy boxes/cartons for shipping
PE bags with strips for added security

About Dongguan Fuyconn Electronics Co., Ltd

Established in 2004, we specialize in IT and communication connectors with over 1,000 models available. Our UL- and SGS-certified products comply with RoHS directives and maintain a defect rate below 0.5%. Our 5,000 square meter ISO-certified facility includes R&D, molding, plastic injection, stamping, and assembly production lines.
