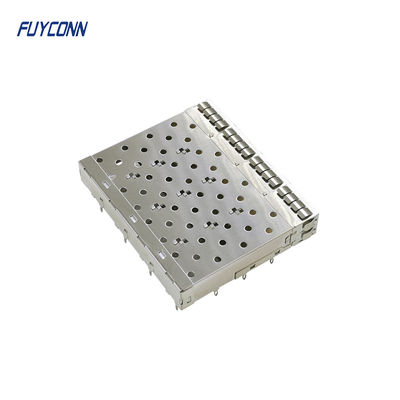

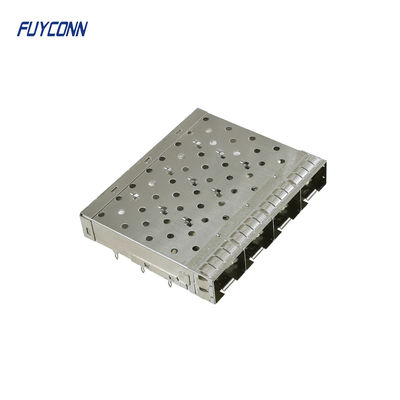

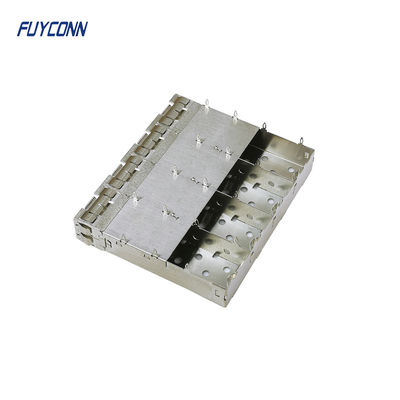

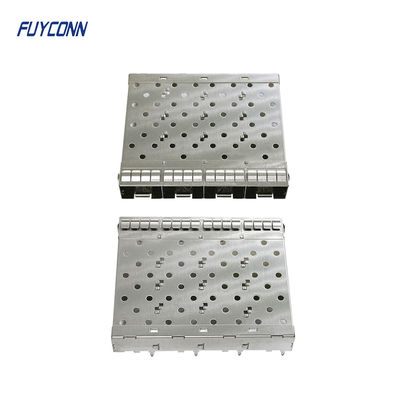

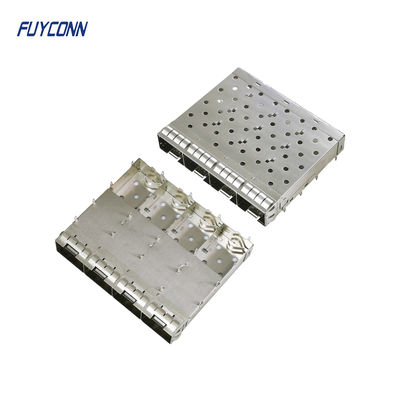

4 Port SFP+ Cage Press-Fit Termination 1x4 Without Light

Ampliación de imagen : 4 Port SFP+ Cage Press-Fit Termination 1x4 Without Light

Datos del producto:

Lugar de origen:	Guangdong, China
Nombre de la marca:	FUYCONN
Número de modelo:	FUYSFP2028-28

Pago y Envío Términos:

Cantidad de orden mínima:	100
Precio:	$5

Contacto

4 Port SFP+ Cage Press-Fit Termination 1x4 Without Light

descripción

Material de contacto:	Latón	Género:	Femenino, femenino
Tipo:	SFP+, SFP+ conector de fibra óptica	Número de puertos:	1*4 Puertos duales
Color:	Nick Silver	Material aislante:	PBT
Material del alfiler de contacto:	Bronce de fósforo	feets:	Prensa
Luz:	Sin luz	Calificación actual:	1AMP
Voltaje que soporta:	500V por un minuto	Resistencia del aislador:	500mΩ min (en DC500V)
Resistencia de contacto:	35mΩ max	Temperatura de operación:	-55°C a +105°C
Puerto:	1*4 4 puertos
Resaltar:	4 Port SFP+ cage connector , Press-fit SFP+ termination , 1x4 SFP+ cage without light

Press-Fit Termination 1x4 SFP+ Cage Without Light, 4 Ports SFP+ Series Connector Straight Solderless SFP+ Cage

Product Overview

The SFP+ (Small Form-factor Pluggable) cage connector is designed for high-speed data communication applications. This 4-port SFP+ series connector features press-fit termination and straight solderless design without lightpipe. Based on IEEE 802.3ae, SFF-8431, and SFF-8432 protocol specifications, it supports data rates up to 10Gb/s for Fibre Channel, 10GbE, SONET, OTN, and other communication standards.

Key Features

Product Name:	SFP+ Cage
Product Line:	Small Form-factor Pluggable
Connector Gender:	Female Centronic Connector
Contact Type:	Small Form-factor Pluggable
Number of Positions:	No Connector, Cage only
Ports:	1×4 (4 Ports)
Finish:	Nickel Silver
Lightpipe:	Without Light

Electrical Specifications

Current Rating:	1AMP
Withstanding Voltage:	500V for one minute
Insulator Resistance:	500MΩ min (at DC500V)
Contact Resistance:	35MΩ Max
Operation Temperature:	-55°C to +105°C

Product Images

Applications

Networking equipment
Router/Switch
Data/Communications
High-end servers
Telecommunications
Switches
Telecommunications hardware
Fibre Channel and Gigabit Ethernet
Servers

Packaging & Shipping

Strong Package Options:

Vacuum Tray
PE Bag
Strong bags/boxes/cartons
PE Bag + Strips

Company Profile

Dongguan Fuyconn Electronics Co., Ltd
Established in 2004, Dongguan Fuyconn Electronics specializes in IT and communication connectors. Our main products include 57 series centronic IDC connectors, centronic PCB DIP type connectors, centronic solder type connectors, V.35 connector, D-SUB connector, SCSI series and RJ series. We have over 1,000 models available.

Our products are UL- and SGS-certified and comply with RoHS Directive. Our product defect rate is less than 0.5% and 99% of customers repeat orders. Our ISO 9001:2008- and ISO 14001:2004-certified factory covers 5,000 square meters with complete production facilities.

Why Choose Us

16 years Centronic Connector production experience
Experienced R&D engineers with 20+ years' experience
Thousands of molds available
UL Certified, ROHS compliant
Factory-direct pricing
Free samples within 2 days
Short lead time (1 week for normal products)
No MOQ requirements
Custom logo options available
Complete in-house production control
Multiple payment methods accepted
